1-1/2" & 2" DLJ Cold Water Multi-jet Meters

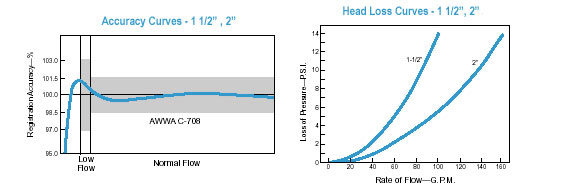

Operating Characteristics & Dimensions

watermeters.com the first and still the best online source for water meters

These and all of our meters are available with contact switches on the
   register for remote registers, batch controllers and data analysis
  The odometer type dial reads up to 10 million gallons
  The sweep hand indicates down to a gallon
  There is a low flow (trickle) leak indicator on the dial to indicate any flow at all

              Also available in Hot Water Models to 194 degrees F
              We stock both US Gallons and Cubic Meter Registrations

Characteristics/Dimensions	Meter Size
	DLJ 150 - 1-1/2"	DLJ 200 - 2"
Flow Rating (gpm)	100	160
Continuous Flow (gpm)	75	120
Normal Flow Range (gpm)	5-100	8-160
Low Flow (gpm)	1-1/2	2
Maximum Working Pressure (psi)	150	150
Maximum Working Temperature (°F)	122	122
Meter Length - Less Couplings (L)	12-5/8"	15-1/4"
Height (standard register & lid) (H)	6-3/4"	7-5/8"
Width (B)	5-3/8"	5-3/4"
Weight (pounds)	11	17
