Wiring the DLJ Meters
to an LCD Remote

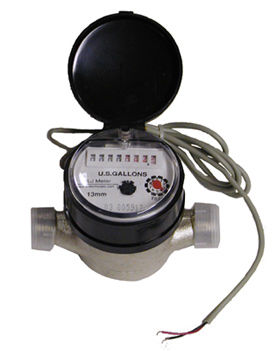

DLJSJ50C Compact Meter With Pulse Switch

LCD Remote

Red Wire on Meter connects to the #2 pin (low speed input) on the Remote

Black Wire on Meter connects to the #6 pin (common) on the Remote

To enable the reset button, follow the remotes manual for changing the switch settings
