DLJ  Hot Water Meters

Available in sizes from 1/2" to 8"

Epoxy Coated Turbine Styles 2" to 8" and
 Bronze Multi-Jet Styles in 1/2" to 2"

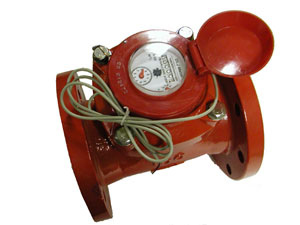

4 Hot Water Pulsing Turbine Meter

DLJ Hot Water Turbines
These meters are exactly the same specs as our DLJ Turbine line, but are engineered and built to withstand hot water up to 194 degrees F (90 Degrees C). We also have other models for up to 350 degrees F.

ALL SIZES ARE NOW AVAILABLE WITH PULSE OUTPUTS



Hot Water Turbine Specifications
Model Number

Size inches
Minimum
Flow
Maximum
Flow
Weight Lbs.
L Dimensions
Face to Face Inches
150# Flanges
Gallons per minute
DLJ200TH
2
4
325
26
12"
DLJ250TH
2.5
5
395
29
7.75"
DLJ300TH
3
6
495
35
8.75"
DLJ400TH
4
9
1250
40
9.75"
DLJ500TH
5
25
1350
44
9.75"
DLJ600TH
6
32
2500
92
11.6"
DLJ800TH
8
38
3450
141
13.6"


Specs on the DLJ Hot Water Turbines (139K, PDF)

3/4 Inch DLJ75H Hot Water Meter With 3/4 NPT Couplings

Epoxy Coated Bronze
Multi-Jet
Hot Water Meters
1/2" to 2"

The same great quality and features as our cold water meter line, but able to withstand hot water temperatures to 194 degrees F (90 degrees C).

All sizes are now available with pulse outputs.




Hot Water Multi-Jet Specifications

Meter Size
Characteristics/Dimensions
DLJ 50H 5/8" x 1/2"
DLJ 75H
5/8" x 3/4"
DLJ100H 1"
DLJ150H 1 1/2"
DLJ200H 2"
Flow Rating (gpm)
20
25
50
100
160
Continuous Flow (gpm)
15
20
30
75
120
Normal Flow Range (gpm)
1/2 - 20
2 - 25
3 - 50
5-100
8-160
Low Flow (gpm)
1/8
1/4
1/2
1 1/2
2
Maximum Working Pressure (psi)
150
150
150
150
150
Maximum Working Temp. (°F)
194
194
194
194
194
Length
6 1/2"
7 1/2"
9"
10"
11"
Height (standard register & lid)
4 1/8"
4 1/8"
3 7/8"
6"
6"
Width
3 3/4"
3 3/4"
4 1/8"
4 1/2"
4 1/2"
Weight (pounds)
3
4
5
9
10


Specs on the DLJ Hot Water Multi-Jets (95K, PDF)

click here for a DLJ 50H, 75H (1/2", 3/4") meter reading chart

click here for a DLJ 100H, 150H, 200H (1", 1 1/2", 2") meter reading chart
